Technical Parameters

Yam khoom	Specification
Max. Taper Lub kaum sab xis / Thickness	± 6℃/ ± 15℃/ ± 30℃/ 80mm
Max. Machining Ceev	200 mm² / min
Hlau pub tus nqi	1 ~ 11.4 m / s (kho tau)
Positioning raug	± 0.01 hli
Rov ua qhov tseeb qhov tseeb	± 0.004 hli
Optimal Machining raug	± 0.003 hli
Optimal Nto Roughness	Ra 0.8m
Molybdenum Hlau Diameter	0.10 ~ 0.25 hli
Fais fab mov	3 theem / 380V / 50Hz
Kev siv fais fab	3 kWv

Khoom Specifications

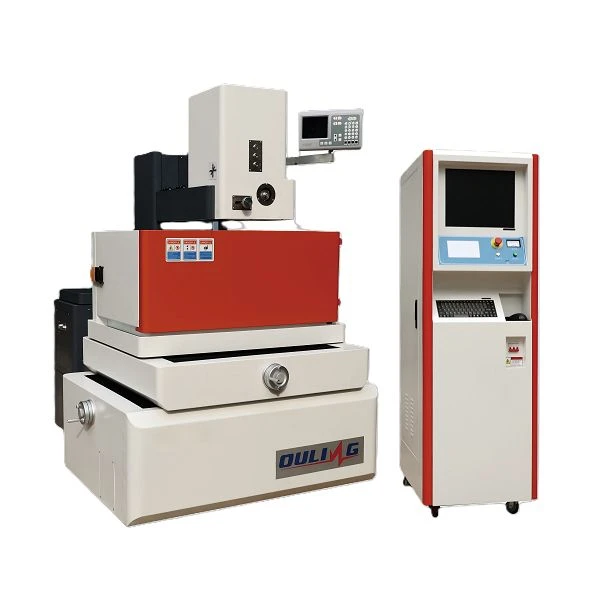

Mechanical Specification	OL 400 CT TSI
Ua hauj lwm rooj loj	470 * 740 hli
X / Y axis taug kev	320 * 400 hli
U/V axis taug kev	60 * 60 hli
Z axis taug kev	280 hli
Max workpiece thickness	300 hli
Max. workpiece hnyav	300 kg
Tshuab lub cev hnyav	1950kg ib
Tshuab lub cev pem teb cheeb tsam	1800 * 1400 * 2000 hli

Standard Configuration

Kev sib txuas ntawm axis	XYUV axis simultaneous
Qhia rail	Linear qhia
XYUV axis drive	Stepper lub cev muaj zog / servo lub cev muaj zog
Z axis tsav	Hybrid lub cev muaj zog
Central lubrication system	Tsis siv neeg
Dielectric tank peev xwm	110 L
Tus tswj	Vertical tswj txee
Software platform	Qhov rai XP / Qhov rai 7
Tswj qhov system	Auto- txiav / Yeej- txiav / X8
Lus qhia	Suav/English/Russian
Saib xyuas	17" LCD npo
Digital readout zaub	XY axis DRO (5μm)
CNC qhia	Standard ISO code
Hom kis tau tus mob	USB/LAN

FAQ

Q: Cov ntaub ntawv dab tsi tuaj yeem ua OL400CT txheej txheem?

A: Lub tshuab tuaj yeem ua cov khoom siv hluav taws xob xws li steel, stainless hlau, carbide, tooj liab, txhuas, titanium alloy, thiab lwm yam ntaub ntawv hlau.

Q: Lub tshuab puas haum rau Precision Pwm Manufacturing?

A: Yog. OL400CT tshwj xeeb yog tsim los rau siab - precision pwm machining nrog qhov zoo ntawm qhov raug thiab qhov chaw tiav.

Q: Lub tshuab puas txhawb Taper txiav?

A: Yog. Nws txhawb taper txiav mus txog ± 30℃ntawm 80mm thickness.

Q: Dab tsi ntawm txoj kab uas hla tuaj yeem siv tau?

A: Qhov kev txhawb nqa molybdenum hlau txoj kab uas hla yog 0.10 ~ 0.25mm.

Q: Lub tshuab puas tuaj yeem txhawb kev lag luam lus Askiv?

A: Yog. Cov kev tswj hwm txhawb nqa suav, lus Askiv, thiab lus Lavxias.

Q: Puas yog Chaw Taws Teeb Hloov Cov Ntaub Ntawv Txhawb?

A: Yog. Lub tshuab txhawb USB thiab LAN kis tau tus mob txoj kev.
