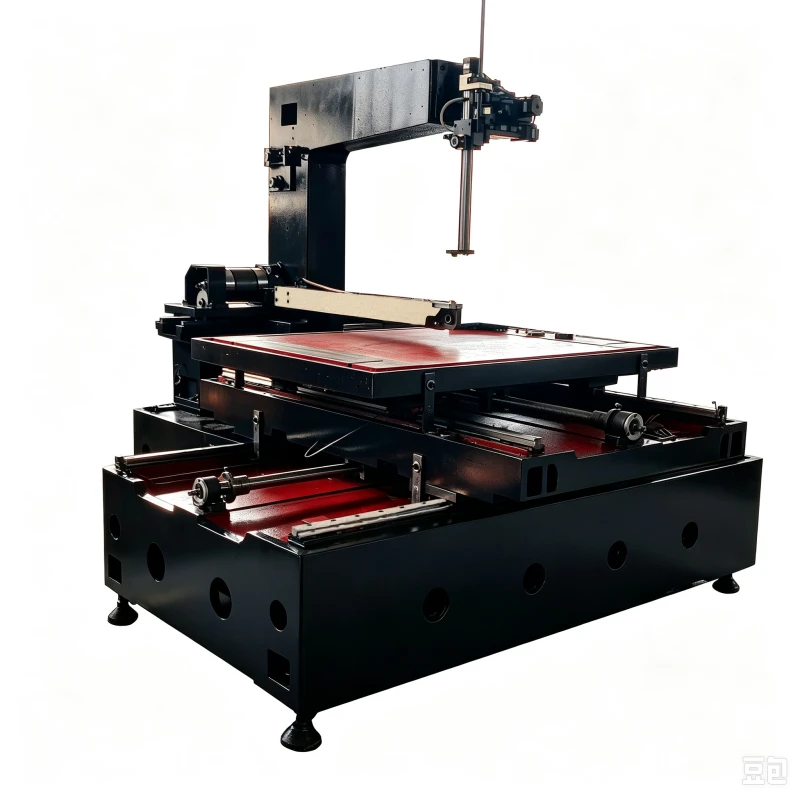

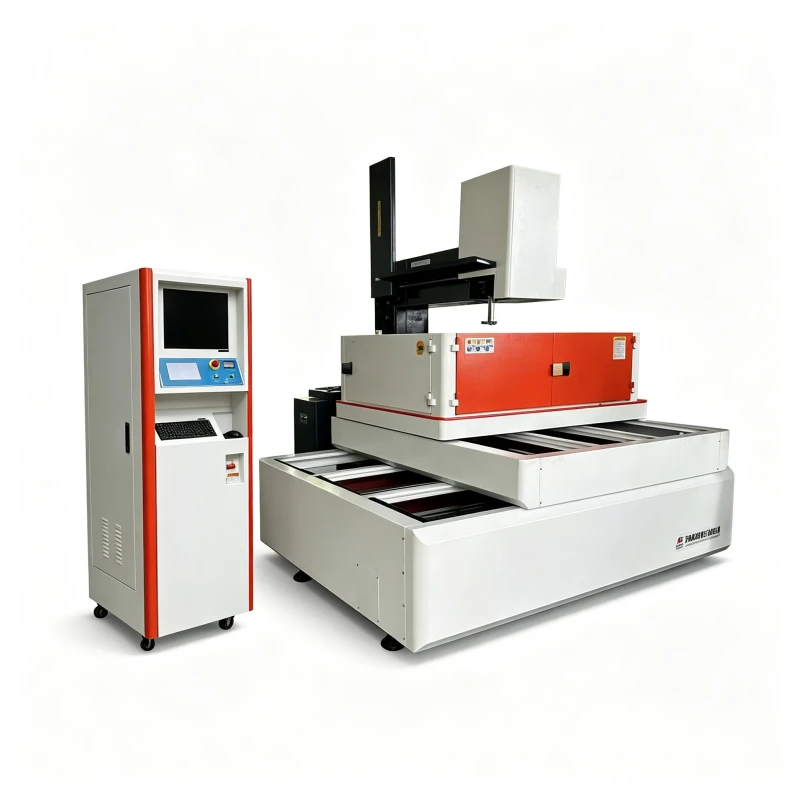

OL1000CT Precision Medium Speed Wire EDM yog tsim los rau cov khoom hnyav hnyav uas yuav tsum tau muaj peev xwm thauj khoom siab, ruaj khov txiav raug, thiab zoo nto zoo. Nws nta 630 × 800 mm X / Y mus ncig, 60 × 60 mm U / V mus ncig, thiab txhawb nqa workpieces txog li 400 mm tuab thiab 1500 kg hauv qhov hnyav. Nrog ± 0.01 hli qhov tseeb qhov tseeb, ± 0.003 hli rov ua qhov tseeb qhov tseeb, qhov kev ua haujlwm zoo tshaj plaws ntawm ± 0.004 hli, thiab qhov chaw roughness mus rau Ra 1.0 μm, OL1000CT yog tsim rau pwm loj, hnyav, thiab precision Hlau EDM txiav daim ntaub ntawv.
| Mechanical Specification | OL 1000 CT | |
| Ua hauj lwm rooj loj | 400 * 700 hli | |
| X / Y axis taug kev | 630 * 800 hli | |
| U/V axis taug kev | 60 * 60 hli | |
| Z axis taug kev | 360 hli | |
| Max workpiece thickness | 400 hli | |
| Max. workpiece hnyav | 1500 kg | |
| Tshuab lub cev hnyav | 4000kg | |
| Tshuab lub cev pem teb cheeb tsam | 2500 * 2200 * 2200mm | |
| Technical Parameter | ||
| Max. taper kaum / thickness | ± 6℃/ ± 15℃/ ± 30℃/ 80mm | |
| Max. machining ceev | 200 mm² / min | |
| Max. hlau pub tus nqi | 1 ~ 11.4m / sec (ntau zaus adjustable) | |
| Positioning raug | ± 0.01 hli | |
| Rov qab positoning raug | ± 0.003 hli | |
| Opitimal machining raug | ± 0.004 hli | |
| Opitimal nto roughness | Rau 1.0m | |
| Molybdenum hlau diam | 0.10 ~ 0.25 hli | |
| Fais fab mov | 3 theem / 380V / 50Hz | |
| Kev siv fais fab | 3kVA ua | |
| Standard Configuration | ||
| Kev sib txuas ntawm axis | XYUV axis simultaneous | |
| Qhia rail | Linear qhia | |
| XYUV axis drive | Stepper lub cev muaj zog / servo lub cev muaj zog | |
| Z axis tsav | Hybrid lub cev muaj zog | |
| Central lubrication system | Tsis siv neeg | |
| Dielectric tank peev xwm | 110 L | |
| Tus tswj | Vertical tswj txee | |
| Software platform | Qhov rai XP / Qhov rai 7 | |
| Tswj qhov system | Auto- txiav / Yeej- txiav / X8 | |
| Lus qhia | Suav/English/Russian | |
| Saib xyuas | 17" LCD npo | |
| Digital readout zaub | XY axis DRO (5μm) | |
| CNC qhia | Standard ISO code | |
| Hom kis tau tus mob | USB/LAN | |
