Khoom Description
Nyob rau hauv niaj hnub manufacturing, high precision hlau EDM yog ib qho tseem ceeb rau kev tsim complex Cheebtsam nrog nruj tolerances thiab superior nto tiav. Ntawm Taizhou Ouling CNC Equipment Co., Ltd., peb tshwj xeeb hauv kev xa cov xaim EDM cov cav tov uas sib xyaw ua ke, kev ruaj ntseg, thiab kev tswj xyuas ntse, ua kom cov txiaj ntsig zoo ib yam txawm tias xav tau daim ntawv thov.
Peb cov tshuab tau tsim kho kom tau raws li cov kev xav tau ntawm kev lag luam uas micron - qib raug thiab rov ua dua yog qhov tseem ceeb.
Dab tsi txhais High Precision Hlau EDM
High precision nyob rau hauv hlau EDM tsis yog txiav txim los ntawm ib qho tseem ceeb. Nws xav tau kev koom ua ke ntawm:
- Stable tshuab qauv
- Qhov tseeb kev tswj qhov system
- Kev tawm dag zog tsis tu ncua
- Intelligent machining parameters
Peb cov kev daws teeb meem suav nrog tag nrho cov ntsiab lus no kom ntseeg tau tias muaj kev ntseeg siab thiab rov ua tau siab -kev ua tau zoo ntawm kev ua haujlwm.
Cov yam ntxwv tseem ceeb ntawm Peb Cov Hlau Siab Siab EDM

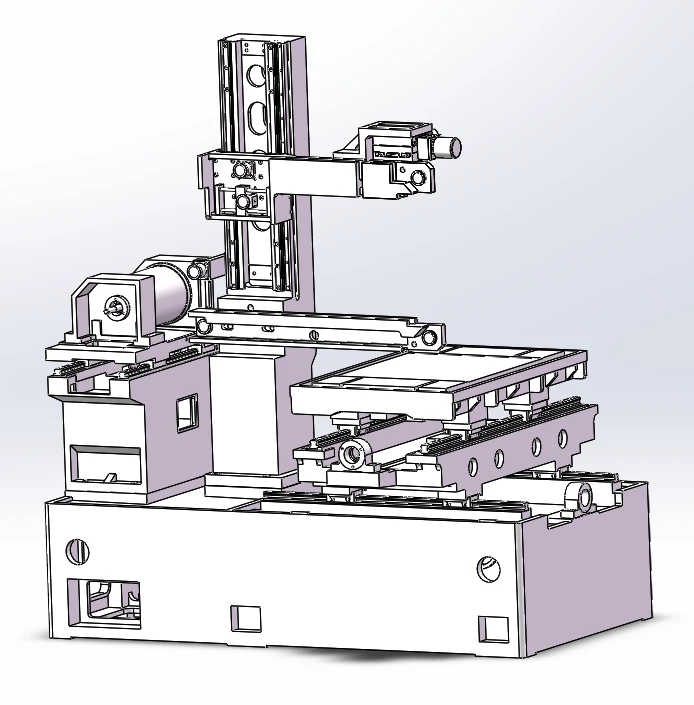

Siab -Rigidity Mineral Casting Structure
Peb siv cov khoom siv ntxhia tshaj plaws los ntawm cov khoom siv hlau cam khwb cia:
- Superior vibration damping
- Txo thermal deformation
- Txhim kho qhov ntev - lub sij hawm raug stability
Cov qauv no yog lub hauv paus ntawm kev ua tiav high precision EDM txiav.
01
Intelligent Adaptive Control System
Tsim los ntawm kev koom tes nrog CAXA-CAM thiab cov kws tshaj lij kev kawm:
- Tsis siv neeg hloov hluav taws xob tsis zoo
- Ruaj khov paug tswj kom zoo txiav
- Txo tib neeg yuam kev hauv precision machining
02
Ua raws li qhov tseeb hla ntawm Thickness Range
Peb cov cav tov muaj precision thaum ua:
- Nyias precision Cheebtsam
- Qhov nruab nrab
- Cov ntaub ntawv tuab ntawm 40mm txog 200mm
Txawm nyob rau hauv tuab workpieces, qhov tseeb qhov tseeb tseem nyob ruaj khov.
03
Smooth Surface Finish Capability
- Tswj lub txim hluav taws xob kom zoo txiav
- Txo cov txheej txheem rov ua dua thiab qhov tsis xws luag
- Haum rau cov pwm thiab siab - kawg cov khoom
04

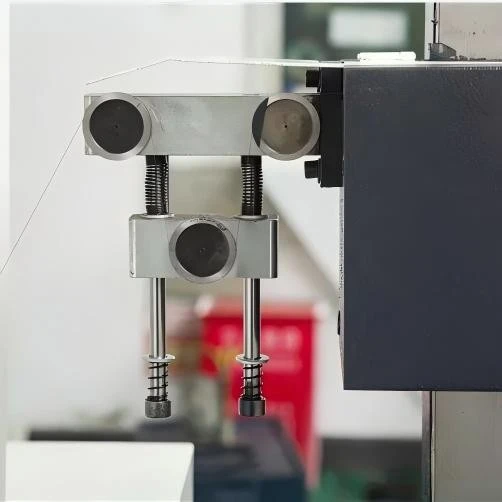

Txo cov hlau tawg rau kev ua haujlwm Precision
- ruaj khov tej yam kev mob
- Optimized hlau nro thiab pub tswj
- Txhim khu kev ua tau zoo thaum lub sijhawm ua haujlwm ntev
05
Technical Advantage
|
Feature |
Qhov zoo |
|
Mineral casting lub cev |
High rigidity thiab vibration absorption |
|
Adaptive siab -frequency system |
Stable paug rau precision |
|
Kev txawj ntse tswj kev koom ua ke |
Txo phau ntawv yuam kev |
|
Dav thickness muaj peev xwm |
Precision hla 40-200mm |
|
Stable zog system |
Siab repeatability |
Daim ntawv thov ntawm High Precision Hlau EDM
Peb cov cav tov tau siv dav hauv kev lag luam uas xav tau nruj kam rau ua thiab cov ntsiab lus zoo:
- Precision pwm thiab tuag manufacturing
- Aerospace Cheebtsam
- Cov khoom siv kho mob
- Electronics thiab micro-cov khoom
- Automotive precision qhov chaw
Yog vim li cas Precision yuav tsum tau ntau tshaj li ceev
Ntau lub tuam txhab tsom mus rau kev ceev, tab sis qhov tseeb high precision hlau EDM xav tau:
- Tswj machining ib puag ncig
- Lub tshuab ruaj khov dynamics
- Kev ntseeg tau hluav taws xob tawm tus cwj pwm
Peb cov cav tov tau tsim los ua qhov tseem ceeb ntawm qhov tseeb thaum tswj kev ua haujlwm tau zoo, ua kom koj cov khoom ua tau raws li cov qauv nruj.
Vim li cas thiaj xaiv Ouling CNC
1. Tsim nyob rau hauv2010, nrog ntau EDM kev tsim khoom
2. Paub txogruaj khov thiab txhim khu kev qha tshuab ua haujlwm
3.Nruam innovation nrog software thiab kev koom tes nrog kev kawm
4.Tsom ntsoov rau kev daws teeb meem tiag tiag -world machining challenges
5. Muaj peev xwm muaj zog hauvprecision + efficiency tshuav nyiaj li cas
FAQ
Q1: Dab tsi ntawm precision koj xaim EDM ua tiav?
Precision nyob ntawm daim ntawv thov thiab teeb tsa, tab sis peb cov cav tov yog tsim los rau siab - raug thiab rov ua dua machining haum rau precision industries.
Q2: Puas muaj peev xwm ua tau zoo rau cov ntaub ntawv tuab?
Yog lawm. Peb qhov kev hloov kho kom ntseeg tau zoo ib yam rau cov ntaub ntawv xws li 40mm txog 200mm thickness.
Q3: Koj ua li cas kom machining stability?
Los ntawm kev sib xyaw ntawm cov ntxhia casting qauv, ntse tswj system, thiab optimized paug tsis.
Q4: Lub tshuab puas haum rau cov duab nyuaj?
Yog lawm. Hlau EDM yog qhov zoo tagnrho rau kev txiav cov geometries nyuaj, thiab peb lub cev ua kom muaj tseeb txawm tias nyob hauv cov qauv tsim.
| Ib qho kev txiav Hlau Txiav EDM | ||
| Mechanical Specification | wb 7745 | |
| Ua hauj lwm rooj loj | 570 * 810 hli | |
| X / Y axis taug kev | 450 * 550 hli | |
| U/V axis taug kev | 60 * 60 hli | |
| Z axis taug kev | 360 hli | |
| Max workpiece thickness | 400 hli | |
| Max. workpiece hnyav | 450kg ua | |
| Tshuab lub cev hnyav | 1500 kg | |
| Tshuab lub cev pem teb cheeb tsam | 1600 * 1240 * 1400 hli | |
| Technical Parameter | ||
| Max. taper kaum / thickness | ± 6℃/ ± 15℃/ ± 30℃/ 80mm | |
| Max. machining ceev | 150 mm² / min | |
| Max. hlau pub tus nqi | 1 ~ 11.4m / sec (ntau zaus adjustable) | |
| Positioning raug | ± 0.03 hli | |
| Rov qab positoning raug | ± 0.005 hli | |
| Opitimal machining raug | ± 0.006 hli | |
| Opitimal nto roughness | 2.5μm | |
| Molybdenum hlau diam | 0.10 ~ 0.25 hli | |
| Fais fab mov | 3 theem / 380V / 50Hz | |
| Kev siv fais fab | 3kVA ua | |
| Standard Configuration | ||
| Kev sib txuas ntawm axis | XYUV axis simultaneous | |
| Qhia rail hom | V-shape hardened rail | |
| XY axis tsav hom | Stepper lub cev muaj zog | |
| Central lubrication system | manual / automatic | |
| Dielectric tank peev xwm | 40 L | |
| Tus tswj | Vertical tswj txee | |
| Software platform | Qhov rai XP | |
| Tswj qhov system | Auto- txiav / Win- txiav / X8 / HL | |
| Lus qhia | Suav/English/Russian | |
| Saib xyuas | 17" LCD npo | |
| Digital readout zaub | XY axis DRO (5μm) | |
| CNC qhia | Standard ISO code | |
| Hom kis tau tus mob | USB/LAN | |
