Khoom Description
Kev kub ceev hlau txiav EDM tshuab yog tsim los txhim kho kev ua haujlwm zoo thaum tswj kev ua haujlwm ruaj khov. Ntawm Taizhou Ouling CNC Equipment Co., Ltd., peb muab cov kev daws teeb meem zoo tshaj plaws EDM uas sib txuas cov kev txiav ceev, kev tswj xyuas ntse, thiab cov qauv kev ruaj ntseg, pab cov tuam txhab ua kom cov khoom tsim tau yam tsis muaj kev cuam tshuam zoo.
Peb cov tshuab tau txais kev lees paub dav dav rau lawv cov kev ua tau zoo thiab cov txiaj ntsig zoo ib yam, txawm tias nyob hauv kev ua haujlwm siab - nrawm nrawm.
Ntsiab nta
Siab -Kev txiav ceev nrog ruaj khov
- Optimized paug system rau kev tshem tawm cov khoom sai
- ruaj khov machining txawm tias lub sijhawm ntev ntau lawm
- Sib npaug ceev thiab raug kom tsis txhob poob zoo
01
Adaptive Intelligent Siab -Tsev siv zaus
Tsim los ntawm kev koom tes nrog CAXA-CAM thiab cov kws tshaj lij:
- Automatic parameter hloov
- Ib qhov chaw rau ntau qhov tuab (40mm-200mm)
- Txo kev xav tau ntawm phau ntawv kev cuam tshuam
02
Mineral Casting Tshuab Structure
- Superior vibration damping piv rau cam khwb cia hlau
- Txhim kho rigidity rau siab - khiav ceev
- Txhim kho thermal stability rau kev ua haujlwm tsis tu ncua
Qhov no ua kom cov kev ua tau zoo sib xws ntawm kev kub ceev.
03
Txo cov hlau tawg ntawm kev kub ceev
- Tiag - sij hawm saib xyuas ntawm machining tej yam kev mob
- Optimized hlau pub thiab nro tswj
- Lub zog tso tawm ruaj khov los tiv thaiv cov xaim tam sim ntawd
04
Tus neeg siv - Kev Ua Haujlwm Zoo
- Simplified parameter teeb
- Txo kev cia siab rau cov neeg ua haujlwm paub txog
- Pab daws cov teeb meem kev ua haujlwm thiab kev cob qhia hauv EDM kev cob qhia
05
Kev Ua Haujlwm Zoo
- Machining cycles sai dua thiab muaj txiaj ntsig ntau dua
- Kev ua haujlwm ruaj khov nyob rau hauv siab -ceev xwm txheej ceev
- Tsawg siv hlau thiab cov nqi kho mob
- Kev txiav zoo ib yam ntawm cov khoom sib txawv
- Kev ntseeg tau ntev - ua haujlwm ntev
Daim ntawv thov
Peb cov kev kub ceev hlau txiav EDM tshuab yog zoo tagnrho rau:
- Pwm thiab tuag manufacturing
- Automotive qhov chaw tsim khoom
- Aerospace Cheebtsam
- Precision engineering
- Hardware thiab tooling industries
Technical Highlights
|
Feature |
Kev piav qhia |
|
Txiav Thickness |
40mm-200mm |
|
Tswj System |
Integrated CAXA-raws li system |
|
Qauv |
Mineral casting lub cev |
|
Tswj ceev |
Adaptive ntse hloov |
|
Kev ua haujlwm |
Yooj yim thiab ua tau zoo |
Tsim los rau Kev Sib Tw Ntau Lawm
Ntau lub Hoobkas ntsib cov teeb meem thaum nce nrawm:
- Tsis ruaj khov machining
- Tsis tshua muaj hlau tawg
- Nce tus nqi tsis raug
Peb cov cav tov daws cov teeb meem no los ntawm kev tsom mus rau:
- Tswj kev ua haujlwm siab - ceev
- Stable paug tej yam kev mob
- Txo tus neeg ua haujlwm kev vam khom
Qhov no ua rau siab -EDM ceev tsis tsuas yog ua tau, tab sis siv tau thiab txhim khu kev qha hauv kev tsim khoom txhua hnub.
Vim li cas thiaj xaiv Ouling CNC
1.Ntawm ib xyoo caum ntawm kev paub txij li thaum2010
2. Pov thawjruaj khov thiab ruaj khov kev ua haujlwm ntawm lub tshuab
3. Muaj peev xwm R & D muaj peev xwm nrog cov neeg koom tes hauv kev lag luam
4. Tsom rauefficiency, precision, thiab usability
5.Dedicated los daws cov teeb meem kev tsim khoom tiag tiag
Dab tsi yog Kev Kub Ceev Hlau Txiav EDM Tshuab
Kev kub ceev hlau txiav EDM tshuab yog engineered rau:
- Ua tiav cov nqi txiav nrawm dua piv rau cov qauv EDM
- Ua kom ruaj khov paug cov xwm txheej ntawm kev kub ceev
- Txo lub sij hawm machining rau complex thiab tuab workpieces
Txawm li cas los xij, qhov tseeb siab -kev ua haujlwm ceev yog nyob ntawm ntau dua li tsuas yog nce lub zog - nws yuav tsum muaj kev tswj xyuas meej, lub tshuab rigidity, thiab kev hloov kho ntse.
FAQ
Q1: Puas yog siab - txiav ceev tsawg dua?
A: Tsis yog. Peb cov cav tov yog tsim los tswj qhov sib npaug ntawm qhov ceev thiab qhov tseeb, ua kom zoo ib yam.
Q2: Lub tshuab puas tuaj yeem tuav cov ntaub ntawv tuab ntawm kev kub ceev?
A: Yog. Peb lub kaw lus txhawb kev ua haujlwm ruaj khov rau cov khoom siv los ntawm 40mm txog 200mm thickness.
Q3: Koj yuav tiv thaiv cov hlau tawg ntawm kev kub ceev li cas?
A: Los ntawm kev hloov pauv kev txawj ntse, kev tswj xyuas kom ruaj khov, thiab kev ua haujlwm zoo ntawm cov hlau tuav.
Q4: Puas yog nws tsim nyog rau kev tsim khoom tas mus li?
A: Yog. Lub tshuab yog tsim los rau ntev -lub sij hawm, siab- ua haujlwm tau zoo nyob rau hauv ib puag ncig kev lag luam.
| Ib qho kev txiav Hlau Txiav EDM | ||

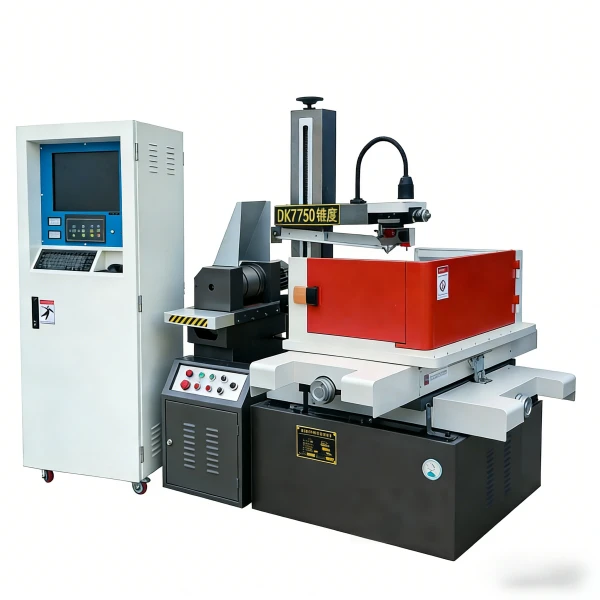

| Mechanical Specification | dk7750 ua | |
| Ua hauj lwm rooj loj | 650 * 950 hli | |
| X / Y axis taug kev | 500 * 630 hli | |
| U/V axis taug kev | 60 * 60 hli | |
| Z axis taug kev | 5 60mm | |
| Max workpiece thickness | 600 hli | |
| Max. workpiece hnyav | 700kg ib | |
| Tshuab lub cev hnyav | 23 00kg | |
| Tshuab lub cev pem teb cheeb tsam | 1700 * 1680 * 1700 hli | |
| Technical Parameter | ||
| Max. taper kaum / thickness | ± 6℃/ ± 15℃/ ± 30℃/ 80mm | |
| Max. machining ceev | 150 mm² / min | |
| Max. hlau pub tus nqi | 1 ~ 11.4m / sec (ntau zaus adjustable) | |
| Positioning raug | ± 0.03 hli | |
| Rov qab positoning raug | ± 0.005 hli | |
| Opitimal machining raug | ± 0.006 hli | |
| Opitimal nto roughness | 2.5μm | |
| Molybdenum hlau diam | 0.10 ~ 0.25 hli | |
| Fais fab mov | 3 theem / 380V / 50Hz | |
| Kev siv fais fab | 3kVA ua | |
| Standard Configuration | ||
| Kev sib txuas ntawm axis | XYUV axis simultaneous | |
| Qhia rail hom | V-shape hardened rail | |
| Axis tsav hom | Stepper lub cev muaj zog | |
| Central lubrication system | manual / automatic | |
| Dielectric tank peev xwm | 40 L | |
| Tus tswj | Vertical tswj txee | |
| Software platform | Qhov rai XP | |
| Tswj qhov system | Auto- txiav / Win- txiav / X8 / HL | |
| Lus qhia | Suav/English/Russian | |
| Saib xyuas | 17" LCD npo | |
| Digital readout zaub | XY axis DRO (5μm) | |
| CNC qhia | Standard ISO code | |
| Hom kis tau tus mob | USB/LAN | |
